# Lighting

# Place Light Strips

alt text

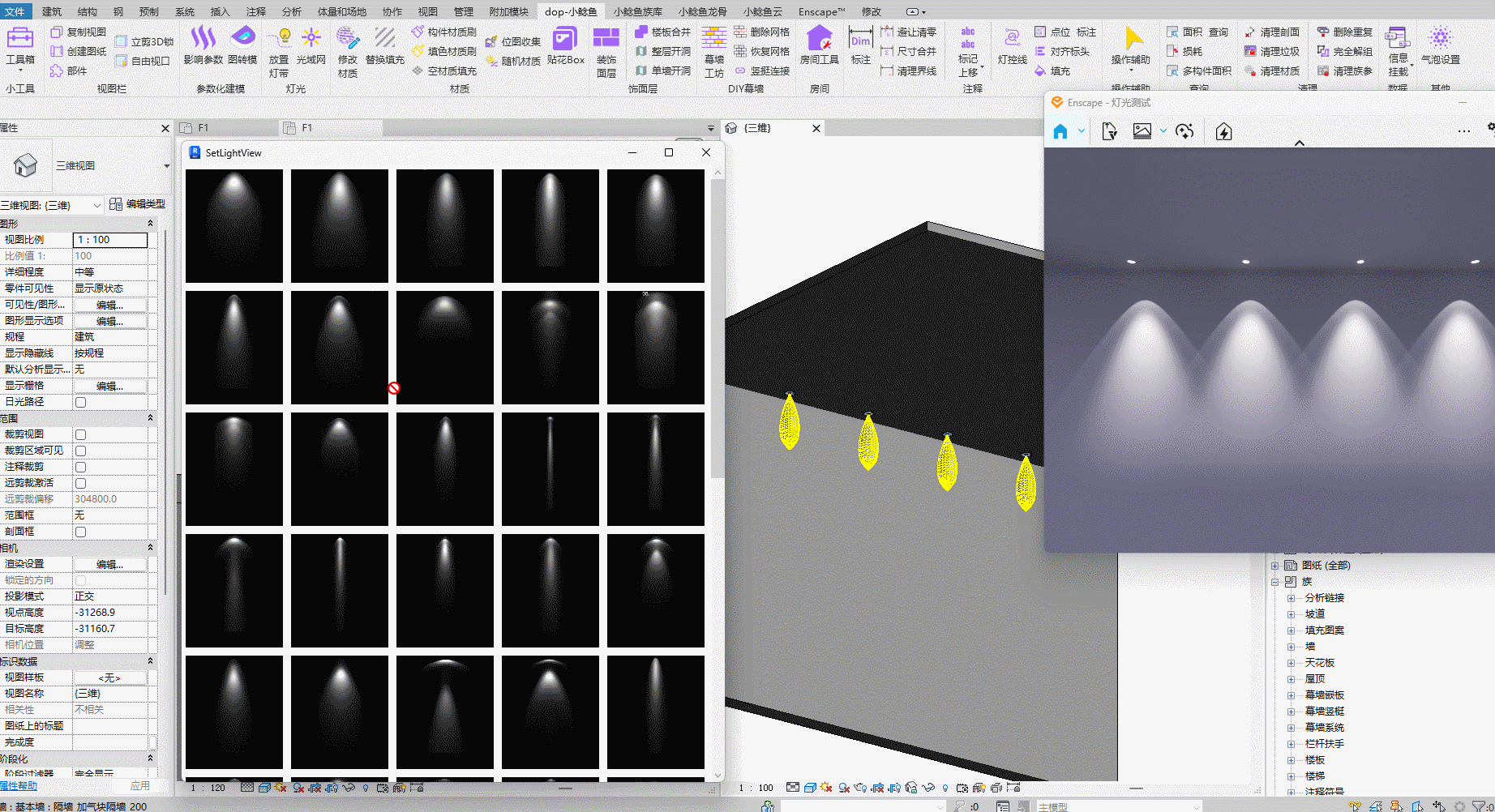

Pick model edge lines to place point light sources. Generated models are grouped for easy modification and deletion.

alt text

Light strips generated using point light sources can produce realistic lighting effects in renders.

alt text

  • Parameter Details

  1. Light Spacing: The distance between generated light sources.

  2. Type: The default point light source type is automatically loaded when the function starts. You can create new types directly if you need multiple light source types.

alt text

Set the parameters and light source type, click "Pick Edge to Place Light Source", then pick the model edge lines in the model to generate.

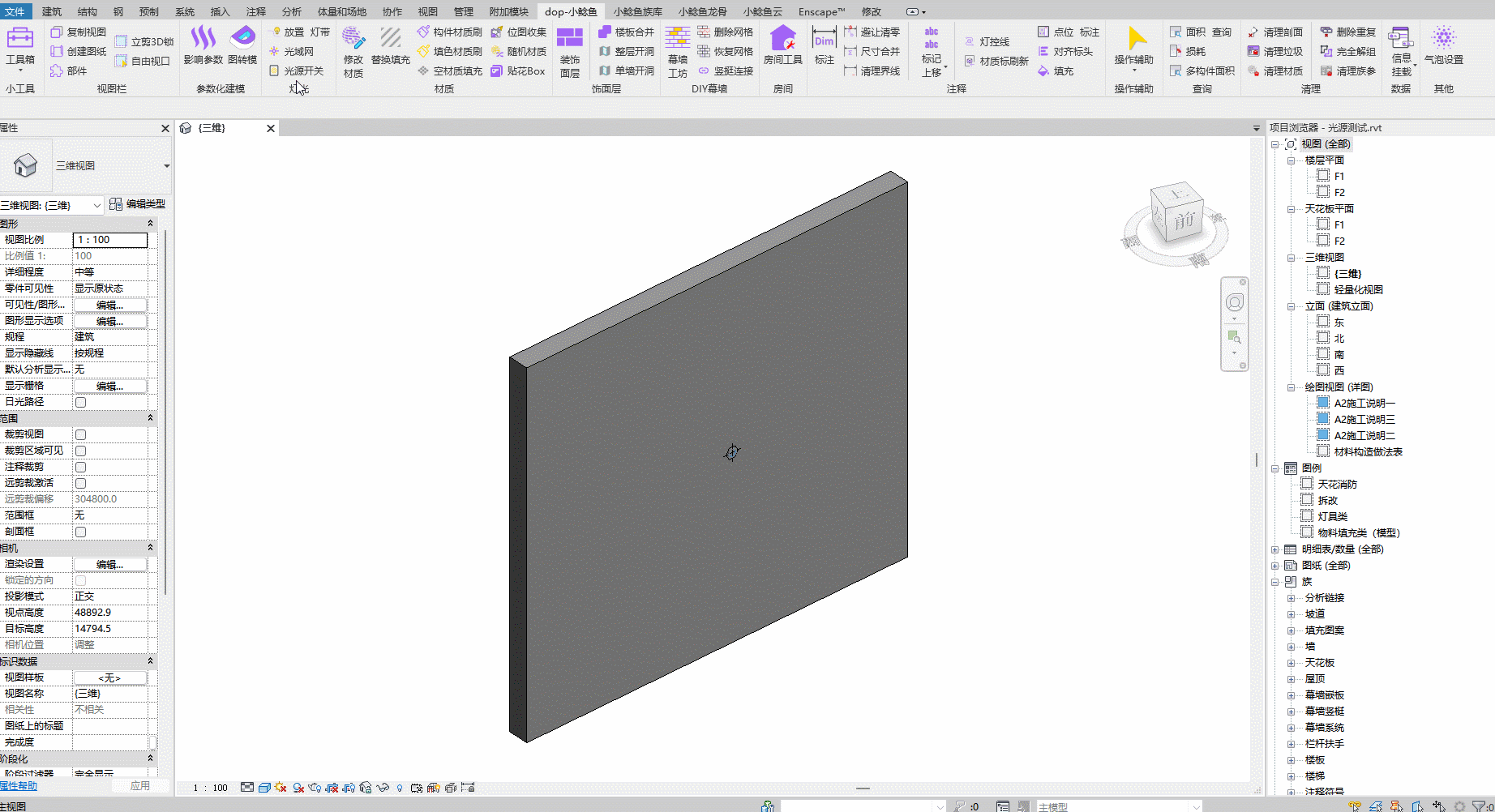

If you can't see the generated light sources in the scene, enable light source visibility in the view visibility settings.

Make sure to consider the line-of-sight occlusion effect of the light source model when placing. Avoid clipping through models. If the model space is very small, adjust the symbol size of the light source model.

Watch tutorial video on Bilibili → Place Light Strips (opens new window)
